Tension Swatch, Gauge Swatch and Mystery Yarn

Tension Swatch, Gauge Swatch and Mystery Yarn

Want to learn more? – check out the Machine Knitting Course “Swatches, Tension and Gauge”
FREE for Subscribers

We tend to use the terms “tension swatch” and “gauge swatch” interchangeably.
For me, the GAUGE SWATCH is the “official” swatch when designing a garment.  It is knit at a specific size, marked for accurate stitch and row measurement and “dressed” as the final garment will be treated. There are a number of tutorials in the Knit it Now Learning Library on this subject.

A TENSION SWATCH helps me determine the gauge that I like. (I rarely try to match gauge on the knitting machine. I prefer to establish my own gauge and use Knit it Now Dynamic patterns)

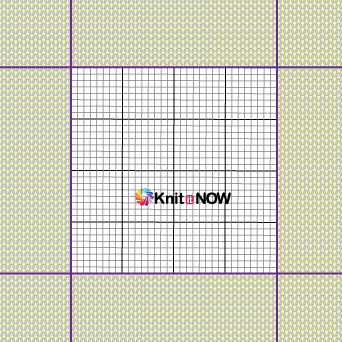

  1. Knit a gauge swatch at least 6″ square, marking off stitches and rows in the CENTER of the swatch.
  2. Measure the distance between the markers
  3. Calculate your stitch and row gauge based on your measurements
  4. For more information: Check the Knit it Now Learning Library SERIES:
    Swatching is NOT Optional


When I pick up a new cone of yarn, I can’t wait to thread up my machine and see what the yarn looks like. From the initial cast on, I start guessing what setting on my tension dial I need to use. I knit a few inches and reach down and start to feel the resulting fabric.

Once I get a feel for the yarn (what machine, general tension setting at stockinette, etc) I create a tension swatch. This helps me fine-tune the tension needed to achieve the fabric I like and allows me to play with various techniques. I’m often very surprised that a yarn looks great in tuck, and awful in slip, for example. Adding a few eyelets here and there tells me if the yarn will work up in lace.

Depending on time (and patience level) here’s an idea of how I knit a tension swatch.

Play with your yarn!

  1. Start knitting stockenette at the tightest tension that will knit. (If the tension is too tight, you’ll see stitches that don’t form properly.)
  2. Knit 2-4 inches.
  3. Knit a marker row (change colors, work a few eyelets across the row or knit a sewing thread in with the main yarn)
  4. Keep knitting sections, marking the tension dial number in each section.
  5. Knit the last section as loosely as possible, even if you think this will be too loose … (I’m often very pleasantly surprised at the result.)
  6. Transfer every other needle to out of work position and knit a section
  7. Put all needles back into work.
  8. Work a simple tuck, or slip, or any stitch pattern of your choice … base your tension dial setting on the stockinette sections you prefer
  9. Wind off a bit of the yarn and try a simple fairisle pattern. Use the same color for both yarns in the feeder – you are just trying to get a feel for what resulting fabric will feel like.
  10. Did I mention? … PLAY!
  11. Cast on in ribbing and try 1×1, 2×2, Full Needle Rib, racked rib … you name it!


The point of this exercise is to put the yarn through it’s paces … ignite your creativity, and get a feel for what the yarn can do. If you don’t have a huge cone, you can always re-wind this knitting.
At this point, you probably know exactly what you want to do with this yarn.

Knit your Gauge Swatch, dress it and you are ready to design and knit your garment.
